Everything* you need, to attach a 20' banner above your shipping container.
This creates a frame for the same size banner as the 20’ banner kit, but raises it up above the container for additional visibility. This kit allows you to set the top of the banner at whatever height you wish, and change the overall shape of the banner by lowering the bottom horizontal bar. This means your banner can be as tall as you like, and as high as you like, up to a maximum of 6m.
INSTRUCTIONS
There are multiple ways to complete this assembly, depending on the overall height
of your installation and location of the lower horizontal bar. Please undertake all
work at height and with heavy objects with caution. This will outline one possible

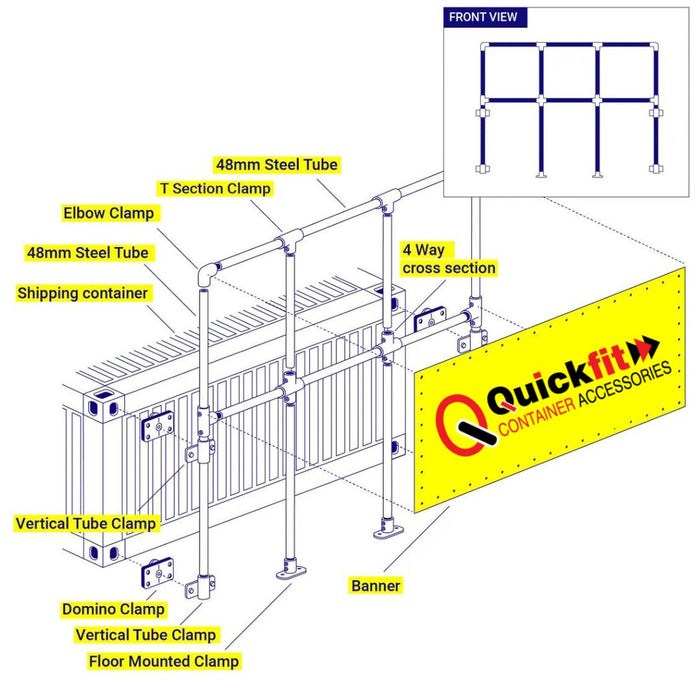

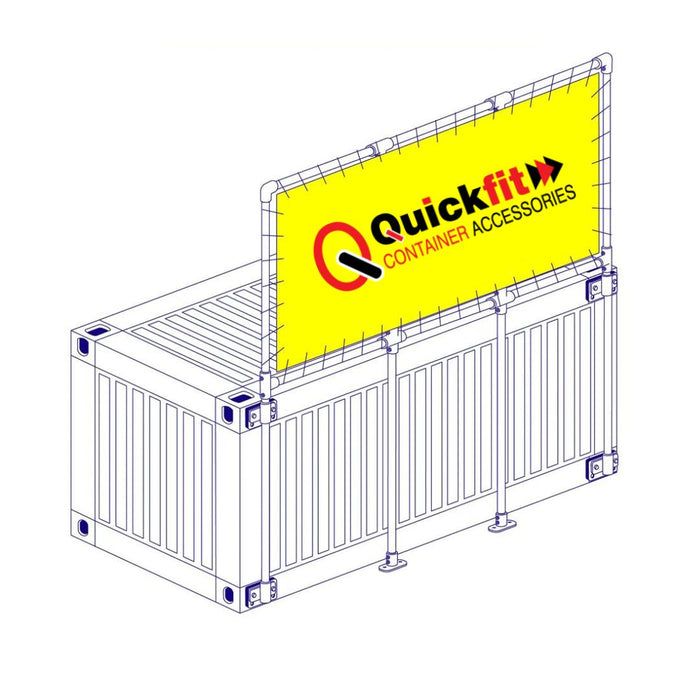

method to install this banner as pictured at the top of this guide.
1. Start by installing a Domino Clamp in each of the four corner castings on the
long face of your shipping container. Follow our detailed installation
instructions if you're unfamiliar with the technique.
2. Using the M12 set screws and washers, attach the unbored vertical tube
clamps to the bottom two Domino Clamps.
3. Assemble the basic frame consisting of the main verticals and horizontals on
the ground first, remembering to include a bored vertical tube clamp on each
vertical tube, the T section clamps on the top bar and the 4 way cross
sections on the bottom bar as you won’t be able to add these later.
4. Now, with two extra people to help, tilt the frame up and drop the vertical
tubes into the bottom two vertical tube clamps that are attached to the
container.
5. Holding the frame in place, position the bored tube clamps so that they line up
with either of the pairs of holes on the upper two Domino Clamps, and attach
these to the Domino clamps using the remaining M12 set screws and
washers.
6. From on top of the container, insert the vertical banner supports. (You may
need to lower the bottom horizontal bar a little to do this, and bring it back up
afterwards)
7. Ensure that all the grub screws for the tube clamps are done up really tight.
8. With your banner frame in place, double check the measurement needed for
the vertical ground support tubes, these should be long enough to reach the
ground while keeping the middle of the bottom horizontal tube level. (Without
these it will sag a little in the middle)
9. Cut your ground support tubes to size, attach the floor mounting clamps and
put them into position.
10. If needed, bolt the floor mounting clamps to the floor using suitable fixings.
11. Attach the banner to the frame.
YOU WILL ALSO NEED:
● Steel scaffolding tube (48.3mm diameter / 1.5” NPS Pipe)
Cut to:
○ (x2) 5.8m (horizontals)
○ (x2) Main verticals (length = distance from ground to the top of the
banner probably about 4.5m max)
○ (x2) Vertical Mid supports. (The same height as your banner)
○ (x2) Vertical ground supports (Approximately the length of main
verticals minus length of your mid supports. Measure to check this).
Please note that these measurements might change slightly depending on your container,
what it is sat on, and also how you arrange the tubes inside the tube clamps. Please double
check your measurements as you go. (Remember: “measure twice, cut once!”)
● 10mm & 8mm Hex Key
● Adjustable wrench/spanner
● Banner and method for attaching the banner to the frame. (this is often done
with rope, or bungees. ask your banner supplier what options they offer)
● (Optional) (x4) screws, expanding bolts, or other suitable fixing to secure the
floor mounting brackets to the surface your container is sat on.
